Encoder

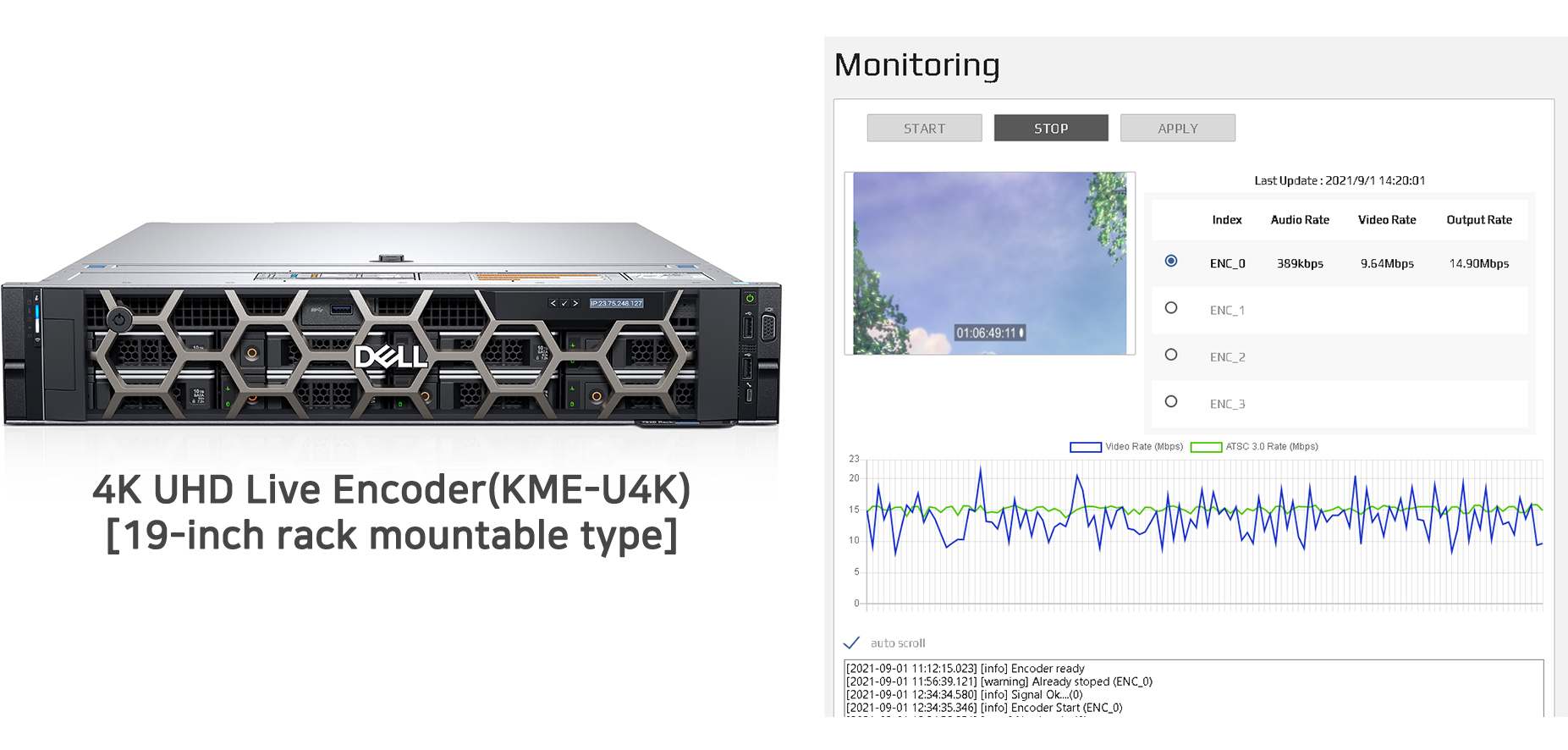

4K UHD Live Encoder
KME-U4K
KME-U4K is the 4K UHD live encoder supporting high-quality, low-latency video encoding with versatile functionality. Our solution offers both cloud and stand-alone options for seamless integration.
Key Specifications
Video Encoding
HEVC (Main/Main10), VVC (Main10)
Resolution / Channels
2160p @ 1CH or 1080p @ 4CH
Signal Input
12G-SDI / HD-SDI, SMPTE 2110 IP
Signal Output
Ethernet / DVB-ASI
Stream Output
ATSC3.0 MMT/ROUTE, MPEG DASH, MPEG-2 TS
Audio
Dolby AC-4, MPEG-H 3D Audio LC Profile Level 3
HDR Support
SL-HDR, HDR-10, HLG; seamless SDR/HDR switching
Clock Sync
PTP, NTP synchronization
Key Features
- Superior quality and low-latency encoding
- Real-time encoding up to 2160p@1CH or 1080p@4CH
- HEVC (Main/Main10 profiles), VVC (Main10) video encoding
- SL-HDR, HDR-10, HLG support with seamless SDR/HDR switching
- Dolby AC-4, MPEG-H 3D audio low complexity profile level 3
- ATSC3.0 MMT/ROUTE, MPEG DASH, MPEG-2 TS streams output
- Signal input: 12G-SDI/HD-SDI, SMPTE 2110 IP
- Signal output: Ethernet/DVB-ASI
- Clock synchronization: PTP, NTP synchronization
- Web UI, NMOS IS-04/IS-05 support
