DMB 올인원 시스템(AIO-10)은 소출력 DMB 방송 서비스를 제공하기 위하여 복수의 DMB 비디오 인코더와 앙상블 다중화기를 한 개의 시스템으로 통합한 DMB 방송 장비로서, 소출력 DMB 방송 서비스를 위한 최적의 솔루션입니다.
AIO-10 integrates all key functions of multiple high-quality video encoding and flexible ensemble multiplexing into one system to provide the best solution for low-power DMB services
|
|
|
|
 Ensemble Multiplexer |
| - Real-time multiplexing of DMB service data |
| - Easy management and user-friendly operation |
| - Compliant with ETSI EN 300 401 v1.41 |
| - Output : ETI-NI(G.703), ETI-NA5592/5376(G.704) |
| - External clock : 10 MHz reference clock |
|
| Multiple Video Encoders |
| - Video compression : H.264 |
| - Audio compression : BSAC |
| - Input |
| Video : SD/HD-SDI, JPG filet |
| Audio : Embedded SD/HD-SDI audio |
| - Resolution : CIF(352X288)/QVGA(320X240) |
| - Frame rate : 0.5/15/30 fps (NTSC), 0.5/12.5/25 fps (PAL) |
| - GOP structure : Flexible |
| - Audio sampling frequency : 24/44.1/48KHz |
| - Video bit rate : 32 ~ 512 Kbps |
| - Audio bit rate : 32 ~ 128 Kbps |
| - TS bit rate : 256Kbps ~ 1Mbps |
|
| Number of Service Channels |
| - Supporting multiple service channels in one system |
| (ex : 2 video channels & 1 visual radio channel) |
| |
[ System Architecture ]
[ Encoder Operation Window ]

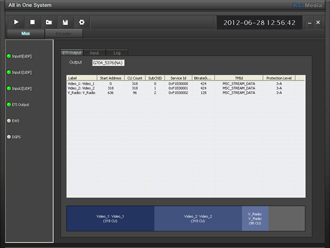

[ Multiplexer Operation Window ]
|
| |
